Radio-controlled slope mower Spider Cross Liner is the newest product in the Spider range. It is the smallest of the Spider mowers, however with its climbing ability and manoeuvrability, the Spider Cross Liner does not lag far behind the commercial models Spider ILD01 and ILD02. Spider Cross Liner is based on the same idea as the other models, and even features a hydraulic winch allows it to cut slopes to 55 degrees.

The Spider Cross Liner is designed for the needs of customers who have only an occasional need for mowing steep slopes and difficult terrain, but also need a comfortable and safe mower for general landscape or garden mowing.

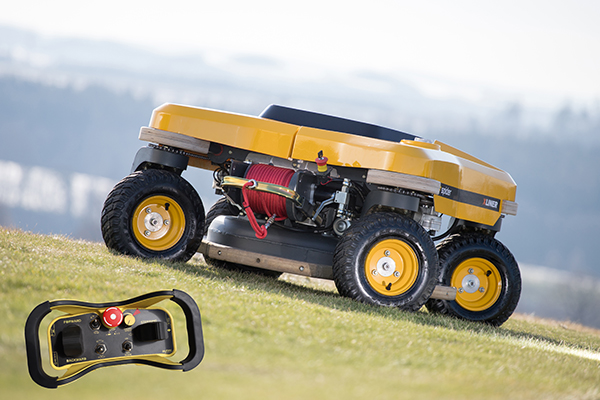

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE SPIDER CROSS LINER SLOPE MOWER

POWER UNIT

• Honda GXV390 vertical crankshaft air cooled 4 stroke single cylinder engine, producing 10.2 hp
• Cartridge Air Cleaner with foam pre-cleaner (dual element)
  Provides improved protection against airborne debris entering the engine
• Float Feed carburettor
• Optimised fuel delivery for improved start ability and superior performance

• Cast Iron sleeve adds integrity & durability that withstands wear & abuse while providing improved oil control
• Mechanical governor controls the engine speed to deliver more usable power under heavy usage
• 3.5 litre fuel tank capacity providing up to 4 operating hours depending on slope & conditions
• Engine runs on standard unleaded or premium 95 octane unleaded for maximum performance

CUTTING DECK

• The deck body and super structure is made from aluminium alloy to obtain minimum overall weight of 175 kg
• Deck is fitted with a marine ply bumper to protect from bumps and scrapes
• Blade is engaged via the remote

• Cutting is done by a single mulching blade
• Overall cutting width is 650mm (26 inches)
• The mulching blade is set well within the deck body to minimise the ejection of grass and debris during mowing.
• The blade is thick hard blade steel

DRIVE AND STEERING

• A hydrostatic drive system provides continuously variable travel speed 0 to 6 km/h, in forward and reverse
• All 4 wheels are driven by the hydraulic motor. All speed, steering and direction controls are located on the operator's wireless remote control
• Steering is 360 degrees on all 4 wheels without lock-to-lock limits
• Machine can be orientated using the skid steer function
• Tyres are nobby 13 x 5 x 6 tube tyres

• The Spider Mower is capable of cutting on slopes up to 55 degrees under its own wheel drive
• The normal steering mode is referred to as the "dancing" step and is the mode normally used for mowing.
• In this mode all 4 wheels turn at the same time

REMOTE CONTROL SYSTEM

• The controller comes with a belt strap and is normally strapped to the operator as two-hand operation is required
• If the controller is dropped or all hands released, the controls revert to the neutral position and the Spider mower stops driving

BROCHURE
