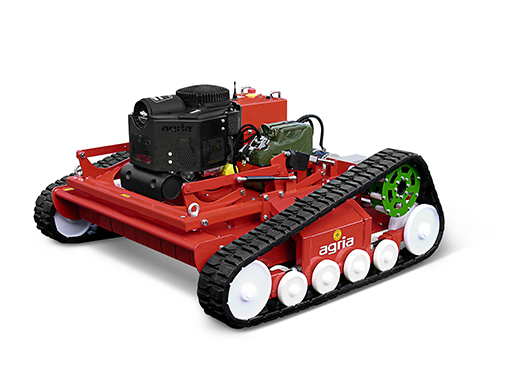

The LT 9600-112/80 is a remote controlled self-propelled rotary mulcher for use in roadside and other slope mowing applications. With its minimal footprint and low centre of gravity it performs very well on steep slopes up to 50 degrees.

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE LT 9600 SLOPE MOWER

POWER UNIT

Both models use petrol engines. 9600-80 is running 17hp V-Twin Kawasaki engine and 9600/112 uses the commercial Briggs & Stratton 24hp V-Twin Commercial series engine.

CUTTING DECK

• Fitted with custom designed blade carriers. Each carrier is equipped with four swinging blades offering swing back capability to minimise impact.
• Cutting height variable from 200mm down to 50mm.

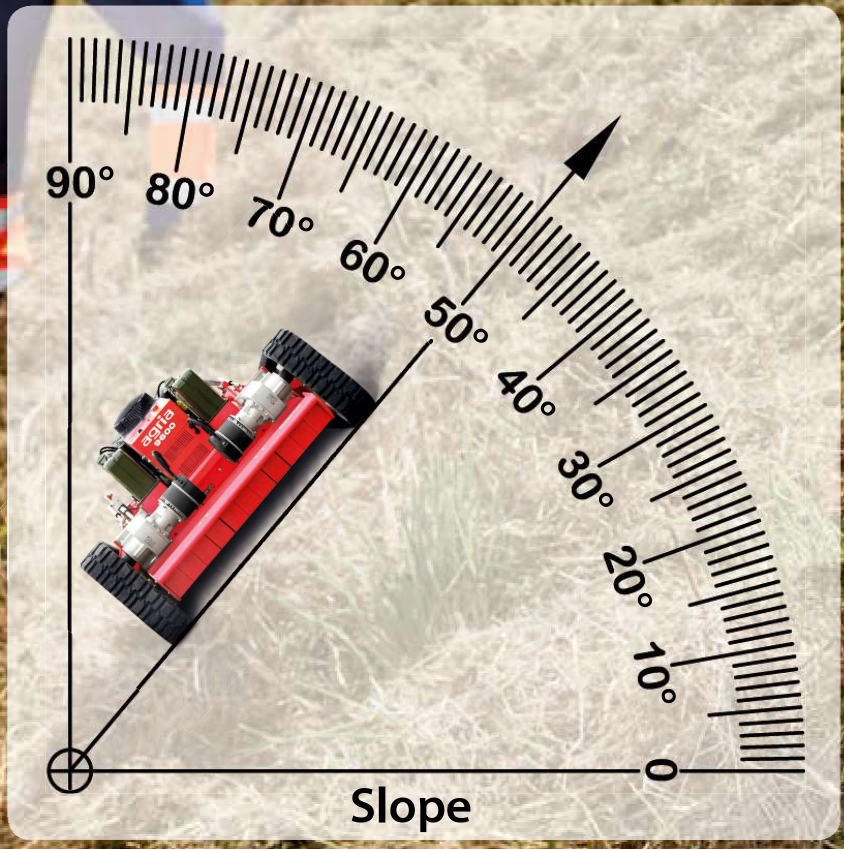

• The LT 9600 is capable of cutting on slopes up to 50 degrees

HYBRID DRIVE SYSTEM

The engine is powering a generator which produces 48 volts to drive two stepless electric drive motors with each producing 500nm of torque. Only a fraction of the engine horsepower is needed to drive the machine with rest of the power going to where you need it most, the cutting deck.

REMOTE CONTROL SYSTEM

• The intuitive remote control has a range of 300m.
• All six key functions are operated via the remote. Engine start, RPM, mower engage, cutting height adjust, joystick and speed range.
• The remote also features an LED display giving the operator information such as travel speed, cutting height, hours of operation, battery charge, radio signal strength and blade engage symbol.

ACCESSORIES

• Side mower for mowing close to the edge and for cleaning out stakes/obstacles.
• Blades for first cut of spring grass

OPTIONS

• Tilt sensor: if the remote control tilts over 90 degrees (eg when operator falls) the machine will switch off automatically.
• LED strobe light: when starting the machine the conspicuous LED stroble light is automatically switched on.

LT 9600 Working Shot

BROCHURE

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
