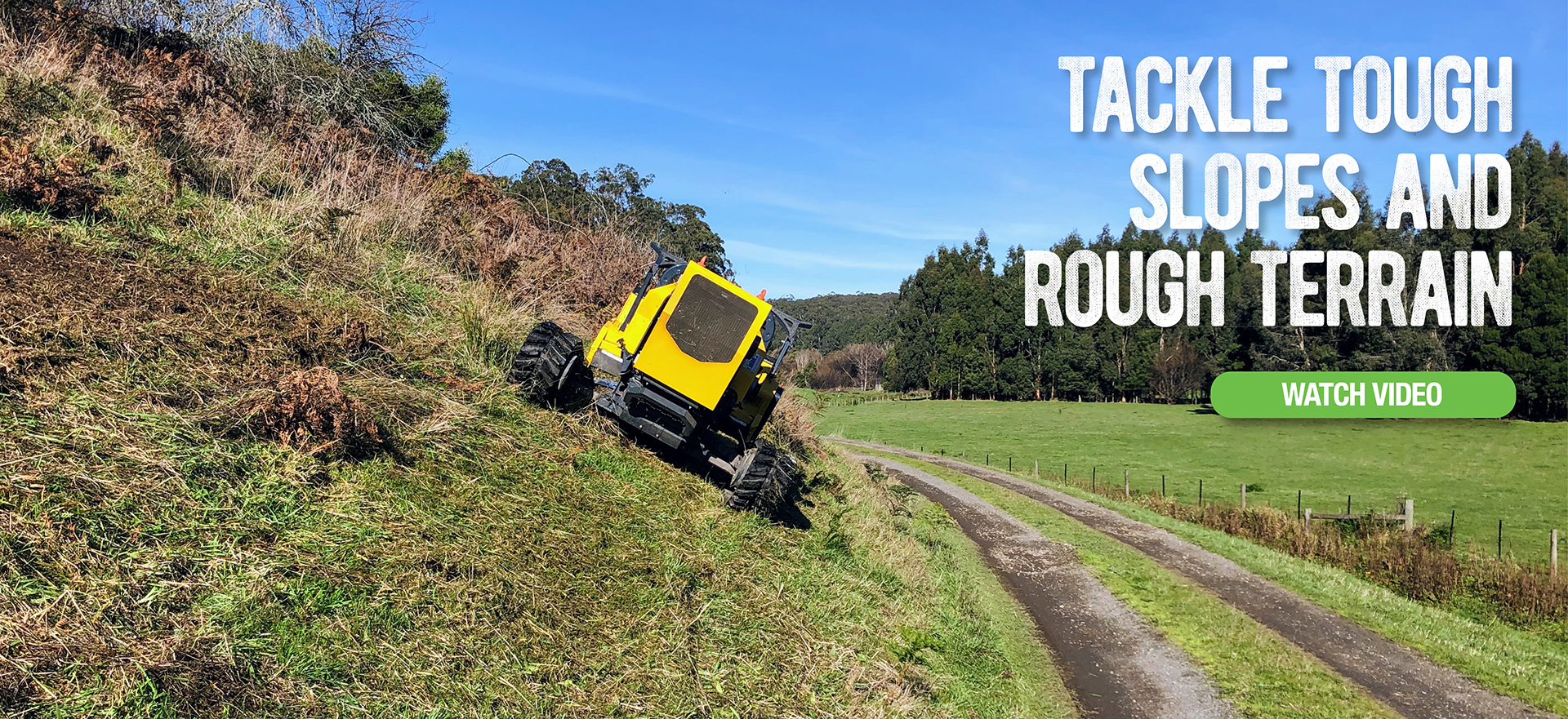

The Civiline Track 50 is a remote controlled self-propelled mulch/flail mower for the maintenance of steeply sloping areas such as embankments, roadsides, hillsides, fire trails and rail corridors. This robust mower tackles heavy scrub and undergrowth in rutted and irregular terrain. Although referred to as a mower, “it performs more like a remote-control slasher”, is a regular comment from those attending demonstrations. It's capable of cutting waist-high growth, saplings to 70mm and small shrubs and plants. The Track 50, cuts slope up to 55 degrees with its twin high grip self-tensioning rubber tracks.

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE TRACK 50 SLOPE MOWER

POWER UNIT

• 3 cyl Turbo 50 hp Perkins Diesel
• Providing 36kW of power
• Electronic engine speed control allowing better performance at lower revs
• Dual element Donaldson air cleaner
• A Flexxaire fan ensures a safe operating temperature in all conditions. In reverse operation, debris is blown clear from engine
• Electrical isolator switch
• 23 litre diesel fuel tank capacity providing between 5 and 7 operating hours depending on slope and conditions

CUTTING HEADS

• Two cutting heads available
  • Y-Flail cutting head for grass & light regrowth areas

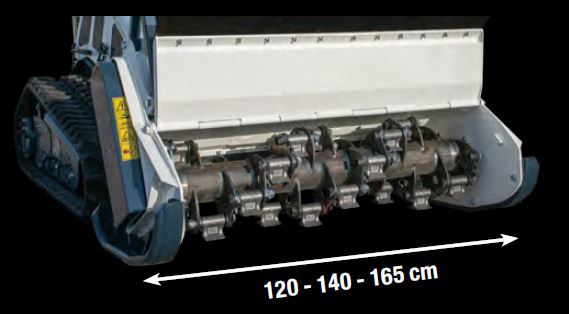

  • Forestry head
  • Mulching head for grass and a forestry head for saplings and shrubs etc
• Fitted with 360° swinging hammers for powerful cutting of scrub/light regrowth areas
• The 360° swinging hammer prevents rotor damage in the event of heavy contact
• Overall cutting width is 1500mm (48 inches)
• Floating option for cutting head to provide even cutting
• Hydraulically operated front door

• To protect the engine, bearings and components, a tough underbody skin is structurally integrated into the frame, preventing ingress of debris, fragments and grit

• A robust roll bar, integrated into the chassis, can also be used to hoist the vehicle if needed. In addition to a 4-point attachment system for lifting, the frame includes front and rear fastening systems for optional tools and equipment

• The Track 50 is capable of cutting on slopes up to 55 degrees under its own wheel drive

REMOTE CONTROL SYSTEM

• The remote control operating all Track 50 functions has a range of up to 150m
• The controller comes with a belt strap and is normally strapped to the operator as two-hand operation is required
• If the controller is dropped or all hands released, the controls revert to the neutral position and the Track 50 stops driving
• Controls include: precise control of forward and reverse track speeds, real time critical machine data the ability to adjust the offset needed to maintain direction and LED degree of slope indicators amongst many others

ACCESSORIES

• Limp home remote
• Cable to allow direct charging of the remote battery from the machine
• Spare battery and charger

OPTIONS

• Rear Winch
• Remote control R-Eye camera system for better operating visibility
• Stump grinder
• Forestry head
• Rotary deck
• Atomizer/Sprayer
• Trencher
• Wood chipper
• Dozer blades
• Front bucket
• Sweeper
• Loader
• Snow blower
• Rakes

• Extraordinary as it is, this is a 55 degree slope
• Such slopes would ordinarily be considered beyond the normal practical limit of a maintainable slope
• But the Track 50 Mower is more than capable of cutting such slopes

Track 50 Working Shot
