    Civiline Specialist Commercial Mowers

    Zenit Hydraulic Offset Mulcher and Shredder

      Loading...

    A low bodied shredder with a 90hp rating and working widths from 1.6m to 3.0m, the Zenit HSS provides hydraulic offset and will comfortably handle applications such as orchard/vineyard prunings, pasture topping, roadside and general grass and vegetation maintenance.

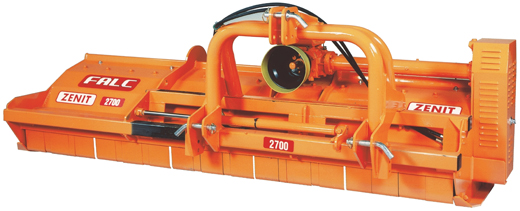

    Zenit Hydraulic Offset Mulcher and Spreader

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE ZENIT MULCHERS & SHREDDERS

    CONSTRUCTION

    Zenit Hydraulic Construction
    • Low profile design for better reduction of pruning and grass
    • 2.5mm replaceable wear and tear sheet for longer life and less noise
    • Hydraulic offset 3pt linkageclevis mounting with Category 2 pins
    • 8m side body plates for greater strength
    • Strong headstock
    • Openable rear doors for ease of maintenance

    TRANSMISSION

    Zenit Hydraulic Transmission
    • 540 rpm PTO
    • Gearbox rated for 90hp tractor with internal free-wheeling clutch
    • Drive shaft with 1 3/8” 6 spline yoke
    • ‘V’ belt side drive: 4 x belts on 1600-2300 & 5 x belts on 2500-3000

    ROTOR

    Zenit Hydraulic Rotor
    • Rotor tube: 193.7mm with 10mm wall thickness
    • High hammer tip speed for high mulching power and finer mulch
    • Forged hammer flails fitted as standard and fastened by 25mm hardened pin & split pin
    • Single comb counter-blade

    SAFETY

    Zenit Hydraulic Safety
    • Complies with CE (European) safety standards
    • Steel front safety flaps across the full intake width
    • Fully guarded ‘Vee’ belts, drive shaft and clutch

    HEIGHT CONTROL

    • Standard fitment:
      • Fixed LH & RH side plate protection skids
      • Rear Roller: 193.7mm with 5mm wall thickness

    OPTIONS

    Zenit Hydraulic Rear pneumatic wheels
    • Dual rear pneumatic wheels in lieu of rear roller
    Zenit Hydraulic Dual Front Steel Wheels
    • Dual Front Steel Wheels
    Zenit Hydraulic Optional Rear Rake Tynes
    • Rear Rake Tynes. The rear support bar is pre-drilled for the mounting of Ø 25mm rake tynes for retaining pruning until completely mulched

    SPECIFICATIONS

    ZENIT 1600 ZENIT 1800 ZENIT 2100 ZENIT 2300 ZENIT 2500 ZENIT 2700 ZENIT 3000
    Working Width (m) 1.59 1.77 2.13 2.31 2.49 2.67 3.03
    Overall Width (m) 1.86 2.04 2.40 2.55 2.76 2.94 3.30
    No. of Hammers 16 18 22 24 26 28 32
    No. of belts in sidedrive 4 4 4 4 5 5 5
    Flail tip speed (m/s) 53 53 53 53 43 43 43
    Weight (kg) 660 720 800 850 910 990 1090
    Tractor Power (hp) 50-90 50-90 50-90 60-90 60-90 60-90 60-90

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website. Follow this link to the manufacturer's website (Falc)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
