Civiline Specialist Commercial Mowers for Contractors, Councils, Public Works, Defence applications.

Civiline Specialist Commercial Mowers

DCS 60 Wheeled Brushcutter / Mower


The DCS 60 Wheeled Brushcutter is a heavy duty line-trimmer brushcutter that is offsetable left and right for mowing along fences and walls. Ideal for taming long and heavy grass on uneven ground, around trees and hard to get areas.
Italian designed and made by Eco Tech Italia, the Eco Brushcutter range is ideal for the contractor, rural property owner and homes backing onto bush and reserve areas; whether tidying the garden around trees and non-mown areas, or maintaining the fire break; operating the Eco wheeled brush-cutter will be light work compared to a conventional load-bearing shoulder-slung brushcutter.

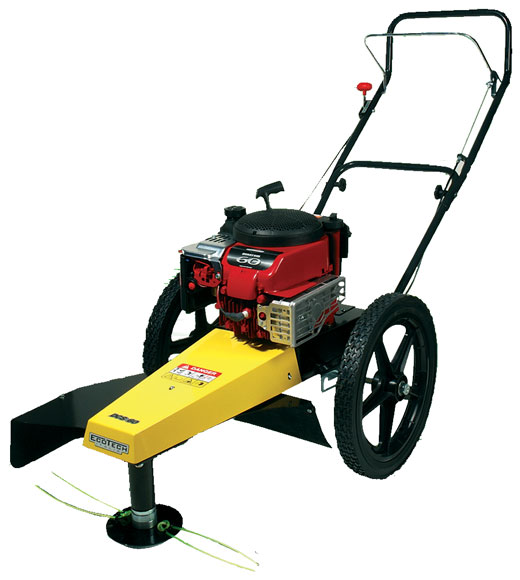

DCS Brushcutter

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE ECO 'DCS 60' BRUSHCUTTER

  • Powered by a 5.5 Horsepower Honda unleaded petrol engine. Refer specifications table below for details
  • Self-rewinding easy pull cord starter
  • Foldable handle bars for storage
  • Safety bar must be held to engage the cutting head
  • Adjustable cutting height with three settings (30, 45 & 60mm)
  • Quick cord change (less than 10 seconds)
  • Head runs on a free-spining skid plate to minimise wear on the head
  • Heavy duty steel deflector protects the operator from debris and discharges grass to the side
  • The maximum cutting width is 600mm
  • The free-wheeling axle allows the machine to be easily swung to left-right as with the operation of a conventional brush-cutter to increase the working width
  • The large 410mm diameter wheels push over the ground much easier than a conventional mower

OFFSET-ABLE HEAD POSITIONS

For cutting along fence lines, barrier rails or walls, the cutting head can be positioned left or right to locate the cutting edge parallel to the wheels. The machine can then be pushed straight ahead while cutting along the edge.
DCS Head Positioning
  • It is a quick operation to position the cutting head left, right or centre.

APPLICATIONS

  • Can you image a 5.5 horsepower brush-cutter with a 600mm cut slung over your shoulder, swinging it from side to side as you clear those difficult to reach areas? The wheeled brushcutter carries itself on large easy-to-push wheels to tackle the big brushcutter jobs with ease.
  • Ideal for:
    • contractors, grounds keeper, golf course rough areas
    • councils, road authorities, defence bases
    • rural home owners
    • home owners adjacent to reserve and bush areas
    • handling all difficult to mow areas
DCS Working
  • General scrub areas where a conventional brush-cutter would be used
  • Ideal for uneven ground and around obstacles and trees
DCS Working
  • Tame grass down to a mown finish
DCS Working
  • It's light weight and easy push wheels enable it to be easily used on sloping areas and drains

OPTIONS

DCS Double Head Option
  • Optional double-head kit provides an extra set of cutting cords. This produces a finer mulch and allows faster operation in less dense grass.
  • Gives long cord life between changes.

SAFETY & ERGONOMICS

  • The machine has several safety and ergonomic features including:
  • Heavy duty steel deflector for grass and debris
  • Safety operation handle - let go of the machine and power to the cutting head is stopped
  • Feet are located well away from the cutting head - compared to a conventional brushcutter
  • Unlike a conventional brushcutter - the machine is not carried during operation reducing likelihood of back, neck and shoulder strain
  • Side-to-side operation is achieve with the operators arms and does not require twisting or rotation of their back
  • Notwithstanding the advanced safety features, operators are advised to take certain precations as with any such powered equipment, including:
Eye protection
  • Wear eye protection
  • Ensure bystanders keep a safe distance of 50 metres from the operating machine
  • Bystanders should never be positioned in line with material discharge or cutting head.
Foot protection
  • Wear sound closed footwear
  • Long trousers are highly recommended

SPECIFICATIONS

Honda
Engine
GCV 160
Horsepower (hp)
5.5
Engine Cubic Capacity (cc)
160
Maximum cutting width (mm)
600
Cutting Heights (mm)
30,45,60
Free-spinning skid plate
Yes
Wheel Diameter (mm)
410
Weight (kg)
33

BROCHURE

Click this link to download a brochure.
Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
Follow this link to the  manufacturer's website (EcoTech)

Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
