Civiline Specialist Commercial Mowers

ML 60 Multi System


The ML 60 Traction Multi System is a self-propelled machine with a system of inter-changeable cutting heads enabling it to become a DCS (Brushcutter), TRT (Mower/Slasher), TRL (Finishing Mower) or TRS (Saw head).
Italian designed and made by Eco Tech Italia, the Eco Brushcutter range is ideal for the contractor, rural property owner and homes backing onto bush and reserve areas.

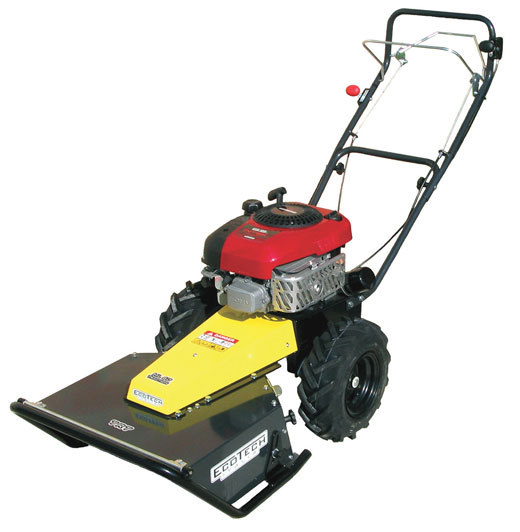

ML 60 Self-propelled Slasher

Photograph for illustration purposes - standard specifications may not match those shown.
NOTE: The Machine is shown above with the TRT head fitted.

FEATURES OF THE ECO 'ML 60' MULTI SYSTEM

  • Two models powered by either a Briggs & Stratton or Honda unleaded petrol engine. Refer specifications table below for details
  • Self-rewinding easy pull cord starter
  • Foldable handle bars for storage
  • The first safety bar must be held to engage the brush cutter head
  • The second safety bar engages drive to the wheels
  • The cutting head is inter-changeable with with a range of heads (refer below)
  • The maximum cutting width is 600mm

SELF-PROPELLED 'Traction'

  • The free-wheeling axle allows the machine to be easily swung to left-right as with the operation of a conventional brush-cutter to increase the working width
  • The mechanical drive propells the machine at approximately 1.6 km/h
Traction wheel
  • The lugged pneumatic tyres provide excellent traction for driving the machine up slippery and loose slopes. The tyre diameter is 330mm at 580mm track width.
Cutting head
  • The quick change head system enables this machine to be a flexible multi-function unit
  • The heads are driven by a splined coupling between the power-unit and the head for a positive and reliable connection
  • The head unit is secured by 4 easily accessible bolts
TRT Head
DCS Head
TRL Head
  • The TRL head changes the ML60 into a finishing mower.
TRS Head
  • The TRS head is ideal for cutting down small saplings
  • Also used in Christmas tree harvesting applications
  • Small tress can be cut down without bending over to get a cut close to the base

APPLICATIONS

  • Ideal for:
    • contractors, grounds keeper, golf course rough areas
    • councils, road authorities, defence bases
    • rural home owners
    • home owners adjacent to reserve and bush areas
    • handling all difficult to mow areas
TRT Head Working
  • Operating with the TRT head
  • The TRT cutting a swathe through a stand of Lantana
DCS Head Working
  • Operating with the DCS head
  • Self-propelled traction is ideal for heavy brushcutting tasks and driving the machine up slopes

OPTIONS

Double Head
  • Optional double-head kit provides an extra set of cutting lines for a finer cut and faster operation in light-duty grass

SAFETY & ERGONOMICS

  • The machine has several safety and ergonomic features including:
  • Heavy duty steel deflector for grass and debris
  • Safety operation handle - let go of the machine and power to the cutting head is stopped
  • Feet are located well away from the cutting head - compared to a conventional brushcutter
  • Unlike a conventional brushcutter - the machine is not carried during operation reducing likelihood of back, neck and shoulder strain
  • Side-to-side operation is achieve with the operators arms and does not require twisting or rotation of their back
  • Notwithstanding the advanced safety features, operators are advised to take certain precations as with any such powered equipment, including:
Eye protection
  • Wear eye protection
  • Ensure bystanders keep a safe distance of 50 metres from the operating machine
  • Bystanders should never be positioned in line with material discharge or cutting head.
Foot protection
  • Wear sound closed footwear
  • Long trousers are highly recommended

SPECIFICATIONS

Briggs & Stratton
Honda
Engine
Quantum 1C
GCV 160
Horsepower (hp)
6.0
5.5
Engine Cubic Capacity (cc)
190
160
Maximum cutting width (mm)
600
600
Pneumatic Lugged Traction Tyre
Yes
Yes
Wheel Diameter (mm)
330
330
Weight:
- Fitted with DCS head (kg)
46
46
- Fitted with TRS head (kg)
48
48
- Fitted with TRT head (kg)
50
50

BROCHURE

Click this link to download a brochure.
Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
Follow this link to the  manufacturer's website (EcoTech)
