    Atex AR950 Ride-on Slope Brushcutter

      Loading...

    The Atex AR950F is a 4WD ride-on suitable for mowing grassed slopes and heavy vegetation up to 25 degrees. It will also do the work that most conventional ride-on mowers do on flat ground.

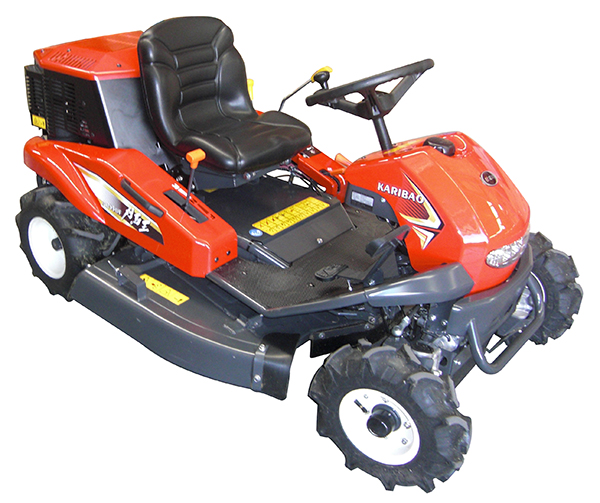

    Atex AR950F Rideon Slope Mower

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE AR950F RIDE-ON BRUSHCUTTER

    POWER UNIT

  • The AR950F has a 24hp Kawasaki engine with electronic ignition
  • Fuel tank capacity is 14 litres
  • Speed 0-10km/h
  • Eco drive mode is standard

  • CUTTING DECK

    AR950F Working Angle
    • Cutting width of 950mm, height 35-125mm
    • Heavy duty double sided blade for grass and heavy vegetation
    • The AR950F is capable of cutting on slopes up to 25 degrees
    • Deck wash port


    KEY FEATURES

    LT 9600 Accessories
    • Eco drive mode
    • Bi-speed front axle increases the speed of the outer front wheel for tighter turning performance.
    • Narrow construction provides good accessibility to difficult area
    • Hand and foot control
    • Telescopic steering wheel
    • Continously variable hydrostatic drive
    • Rear diff lock when maximum traction is required
    • Japanese made by Atex the pioneer in this class of ride-on mower

    OPTIONS

    LT 9600 Accessories
    • Optional foldable protection frame

    Atex AR800 Working Shot

    Heavy vegetation on a slope

    SPECIFICATIONS

    AR950F
    Horsepower 24
    Cutting speed range
    Travel speed range - forward (km/h) 0-10
    Travel speed range - reverse (km/h) 0-8.5
    Overall Dimensions (mm) 1965 x 1090
    Overall Height (mm) 955
    Weight (kg) 350
    Cutting Width (mm) 950
    Cutting Height (mm) 35-125
    Slope (degrees) 25


    BROCHURE

    Click this link to download a brochure.
    Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the  manufacturer's website (Atex)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
