The Civiline LT 9500i is a remote controlled self-propelled rotary mulching mower for use on extreme slopes along with roadside mulching. With its low ground impact and low centre of gravity it will perform safetly and efficiently on steep slopes up to 45 degrees. The LT 9500i really comes into its own on rough and uneven ground, mulching through the harshest terrain with ease. The drive track system gives great stability and traction, leaving minimal visual impact on grassed areas. Easy to transport with proven productivity and efficiency –read more

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE LT 9500i SLOPE MOWER

POWER UNIT

Fitted with a Kawasaki FS600V EFI Engine producing 17Hp (12Kw).

CUTTING DECK

• Fine cut or mulching blade choices

• Fitted with custom designed blade carriers to retain and mulch grass and vegetation. Each carrier is equipped with four swinging blades offering swing back capability to minimise impact.
• Cutting height variable from 130mm down to 30mm.

• Deck material thickness 10mm

• Automatic spring-loaded blade tensioner with automatic blade shut off due to overload via a sensor.

• Rubber flaps help stop objects being ejected from the deck front and back.

• Sideways ejection is not possible due to crawler tracks.

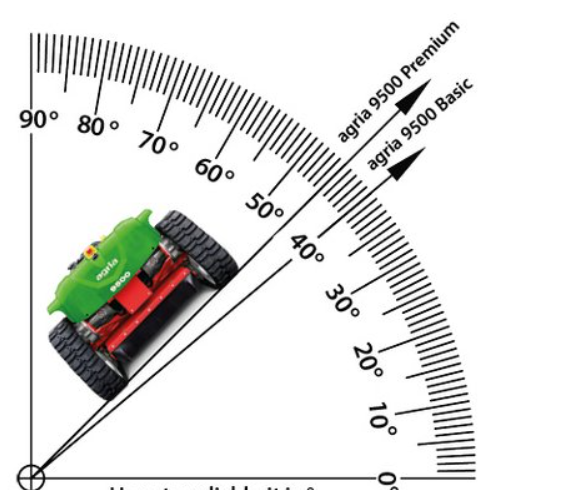

• The LT 9500i can cut on slopes up to 45 degrees

• Successful Thrown Object Test certified by independent institute of DLG. Safety flaps protection against thrown objects such as stones and wood.

FUEL SYSTEM

• Swap n Go jerry can system. Makes it safer when refueling on slopes. Fuel level is displayed on the remote control and provides approximate operating time of 3 hours with two full tanks. 1 removable tanks supplied as standard.

HYBRID DRIVE SYSTEM

The engine is powering a generator which produces 48 volts to drive two brushless free electric drive motors with each producing more than 500nm of torque. Only a fraction of the engine horsepower is needed to drive the machine with rest of the power going to where you need it most, the cutting deck. The combination of a petrol engine and electric drives work much more efficiently and therefore is more environmentally friendly than hydraulic concepts.

ELECTRIC MOTORS

• Asynchronous design (very robust)
• Brushless: wear-free, maintenance-free
• Identical speed of both drive motors
• allows exact straight run of the machine
• Class IP 67 protection against dust and humidity

• Electromechanical fail-safe brake, can be manually released to allow mower to be moved without starting

REMOTE CONTROL SYSTEM

• The intuitive remote control features a 2.8” display.
• Operating parameters of the remote include:
  • Speed
  • Cutting height
  • Fuel level
  • Operating hours
  • Generator voltage
  • Starter battery voltage
  • 300m operating range

• The remote also features a tilt sensor to automatically shut off the machine if the operator falls.
• Drift function utilizing a potentiometer for changing the speed of the crawler tracks left / right) can also be used for precise steering to achieve straight line mowing

TRACKS AND ROLLERS

• Rubber tracks with non-slip block profile, steel carcass and lateral bead, gentle on vegetation to protect the integrity of the slope. Easy track tensioning adjustment.

• Track rollers made of polyamide which are very strong with high wear resistance
• Ball bearings sealed, on both sides with cover seal and shaft sealing ring

INFORMATION VIA REMOTE CONTROL

• The 2.8“ display keeps you informed about all device statuses and for example provides you with a visual warning signal, as soon as the machine is moving on a critical slope out of recommended range or should be refuelled.

TRANSPORT

• Four cast eye bolts are provided for conveniently locating tie-down hooks when transporting.

ACCESSORIES

• Side mower for mowing close to the edge and for cutting around trees and posts.
• Blades for first cut of spring grass

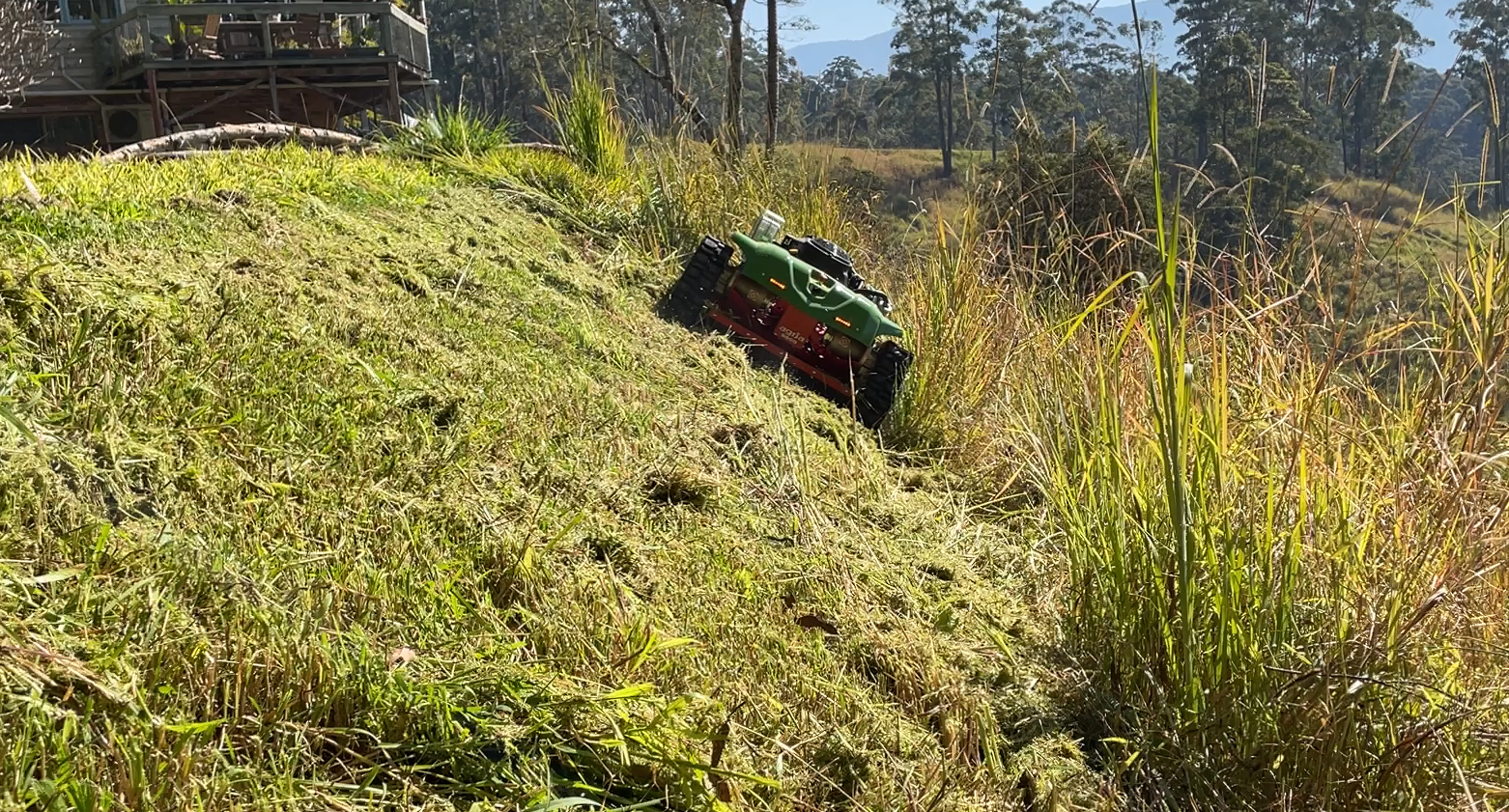

LT 9500i Working Shot
